# Ticket Resolution

This guide outlines a technician or engineer's process for working on a ticket, from creation to resolution. Tickets follow a specific workflow, which are the steps or guidelines to follow when resolving a ticket, request, or problem.

<figure><img src="/files/qE1Wz2Q1beO93zNG9ouZ" alt=""><figcaption></figcaption></figure>

{% hint style="info" %}
**NOTE:** This demonstration will outline a default ticket workflow process implemented in Infraon Infinity. A comprehensive understanding can be gained by exploring the **“Ticket Workflow”** module under **“Infraon Configuration -> Infraon Automation -> Workflow -> Ticket.”**
{% endhint %}

## Ticket Workflow

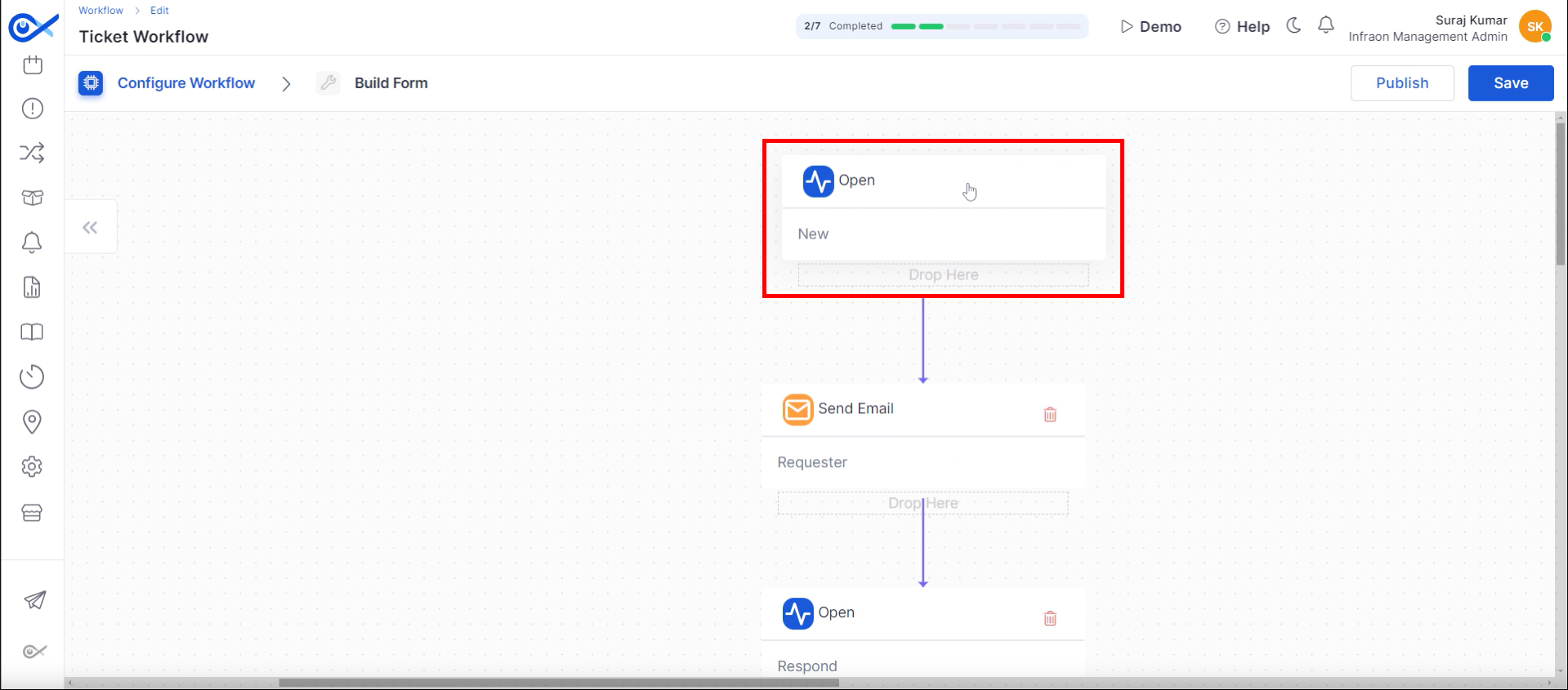

<img src="/files/aPc77TM6lmRIABl1ebG0" alt="Right pointing backhand index" data-size="line"> When a new ticket is generated within the system, its lifecycle is initiated in the **“Open and New”** state.

<figure><img src="/files/F3Ev4AgvWIqkgrUW7IK0" alt=""><figcaption></figcaption></figure>

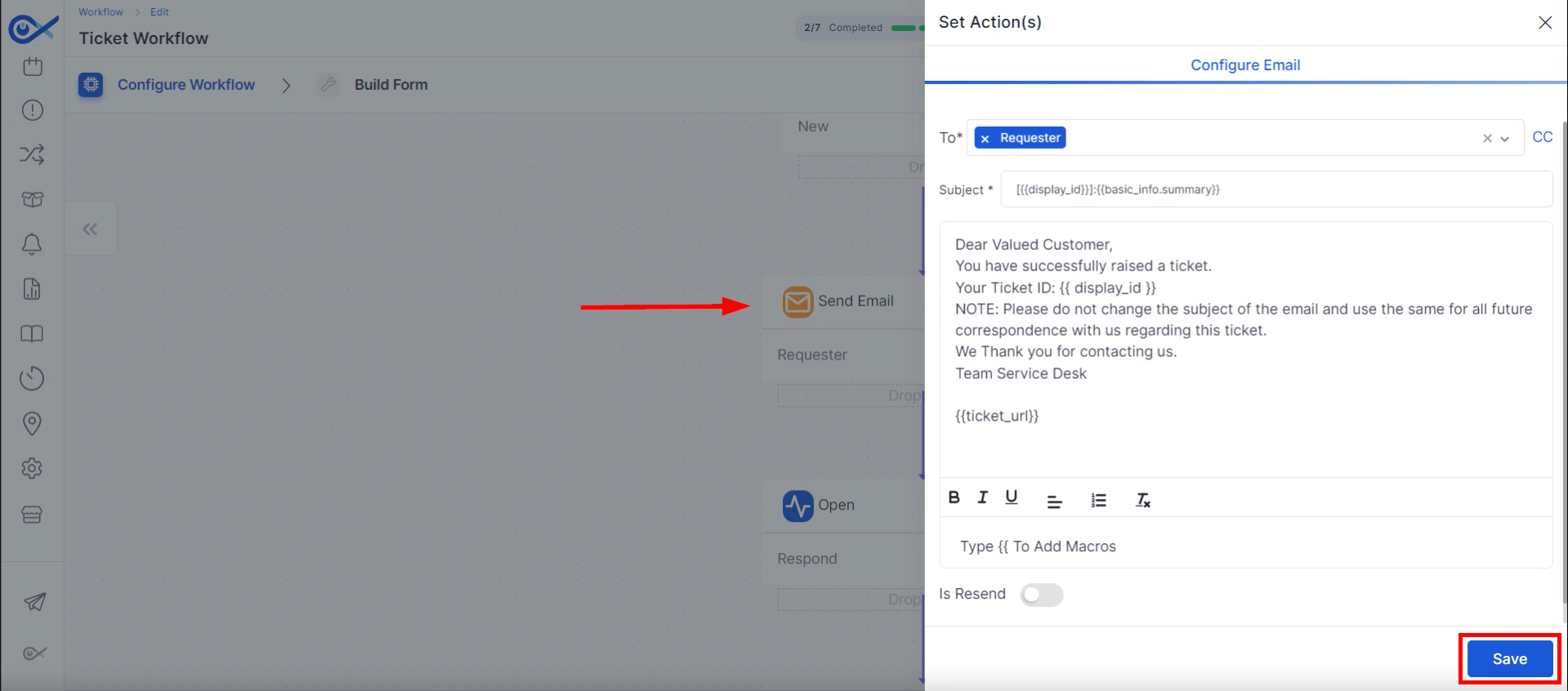

<img src="/files/sjehxtOO28lRudsTt7AR" alt="Right pointing backhand index" data-size="line"> An automated email acknowledging ticket creation is sent to the end user. Email content can be customized using available macros.

<figure><img src="/files/Sk8FfmYFHmodKPw4rTxO" alt=""><figcaption></figcaption></figure>

<img src="/files/zCr1UzmWdXYAP3oZXlBO" alt="Right pointing backhand index" data-size="line">The ticket status is updated to **“Open-Responded,”** signifying the commencement of technician involvement.

![](/files/vLMiN6QQpAB3BbgoDaeU)

<img src="/files/M16gSZ0R0bxZAAcbsAIt" alt="Right pointing backhand index" data-size="line">The ticket transitions to the **“In-Progress Analysis”** state. This phase may include sub-statuses like **“In-Progress Escalated”** for elevated issues.

![](/files/sjsrQFPek6jADjJbki5I)

<img src="/files/X1iE7CmOWcQiCuFr4G4S" alt="Right pointing backhand index" data-size="line">If the end user is required to provide additional information, the ticket can be placed on hold in the **“Pending for User Input”** state. SLA timers are paused during this phase.

![](/files/LXx2pxUhQ3Ut3vVWM5Yj)

<img src="/files/8q04Cj8nBELGHyLWlTKP" alt="Right pointing backhand index" data-size="line">Once a solution is determined, the ticket status is changed to **“Resolved and Waiting for Closure.”**

![](/files/7kA5nvZSELBp5Za02ri0)

<img src="/files/pi3offoafzo4e38In7GY" alt="Right pointing backhand index" data-size="line">An email is sent to relevant parties informing them of the ticket resolution, including a summary and solution details.

<figure><img src="/files/fMoVFQEu8WwERvKHNH0L" alt=""><figcaption></figcaption></figure>

<img src="/files/K7Eq8hD58gWcC2tU5CXt" alt="Right pointing backhand index" data-size="line">The ticket is officially closed upon confirmation from the end-user.

<img src="/files/iidAPOLiPZIWOecCdUxT" alt="Right pointing backhand index" data-size="line">The ticket will be automatically closed if there is no response from the end user within a specified timeframe.

![](/files/Aa3wfSzIXaSpM0D0xmzM)

This outlines the standard ticket workflow. The following sections will detail how this workflow is implemented within the tool and technicians' specific actions when assigned a ticket.

## Ticket Handling

<img src="/files/hnRREuMZuBU8tJiIOSwU" alt="Right pointing backhand index" data-size="line">Whenever a new ticket is generated, it is assigned to the technician based on predefined rules or manual allocation.

![](/files/D2Aqt317dz4Qtlo5q2Ow)

<img src="/files/VjlkpwsErmjWeMwtJIX7" alt="Right pointing backhand index" data-size="line">Essential ticket details, including the end-user, are populated. The ticket's initial status is then set to **“New and Open.”**

![](/files/20G9Nf82VggYqmrFhAqW)

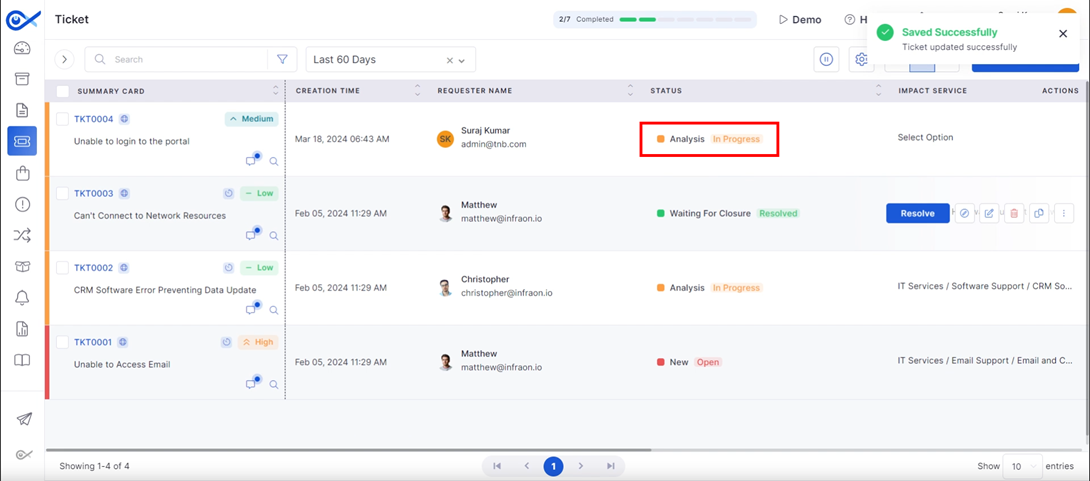

<img src="/files/VjlkpwsErmjWeMwtJIX7" alt="Right pointing backhand index" data-size="line">Upon acknowledging the ticket, the technician changes its status to **“In-Progress Analysis.”**

<figure><img src="/files/QlVC3FrPpmWIFzNUnFxt" alt=""><figcaption></figcaption></figure>

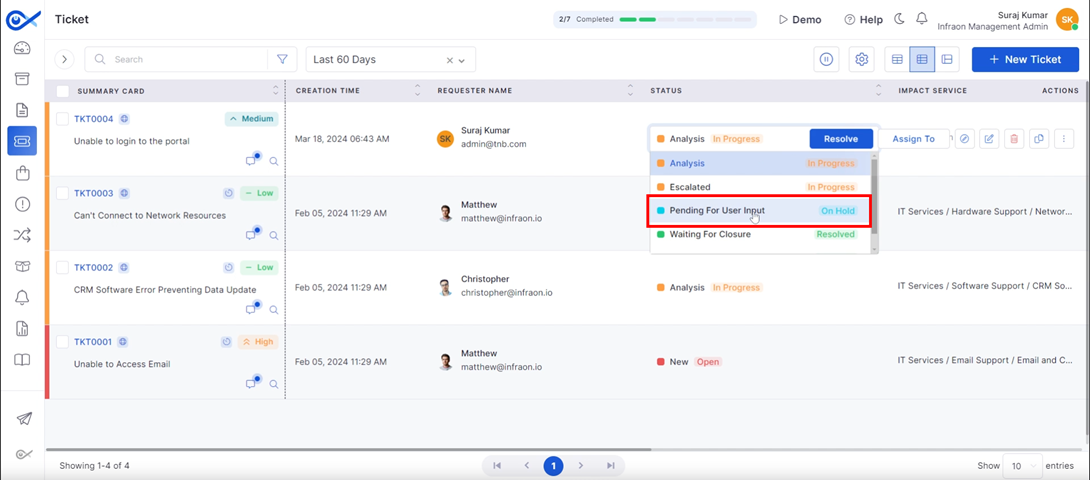

<img src="/files/VjlkpwsErmjWeMwtJIX7" alt="Right pointing backhand index" data-size="line">As the investigation progresses, the ticket status is updated accordingly. If additional information is required from the end user, the status is changed to **“Pending for User Input.”**

<figure><img src="/files/NiizFQtCy9jOyNoH1QUR" alt=""><figcaption></figcaption></figure>

In case of escalation, the status is updated to **“Escalated.”**

<figure><img src="/files/MwFaje5wHft4ZHbgsCsf" alt=""><figcaption></figcaption></figure>

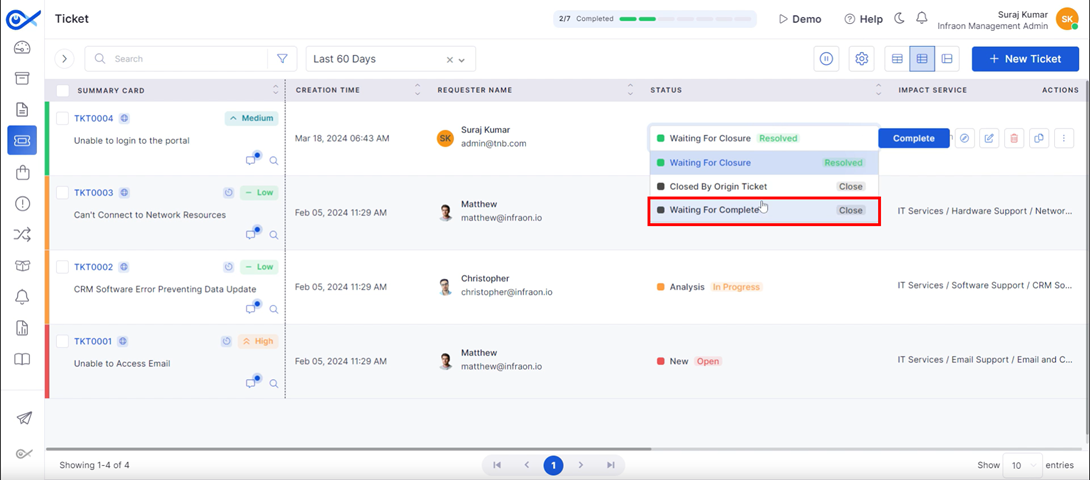

<img src="/files/VjlkpwsErmjWeMwtJIX7" alt="Right pointing backhand index" data-size="line">Once a solution is determined, the ticket is marked as **“Resolved and Waiting for Closure.”**

<figure><img src="/files/z0NjaNYeKURmDj0cFlAf" alt=""><figcaption></figcaption></figure>

<img src="/files/VjlkpwsErmjWeMwtJIX7" alt="Right pointing backhand index" data-size="line">The end user is then presented with options to close or reopen the ticket.

<img src="/files/VjlkpwsErmjWeMwtJIX7" alt="Right pointing backhand index" data-size="line">Upon closure confirmation from the end user or system timeout,&#x20;

<figure><img src="/files/XSB7xG9y7FHNdlw3m968" alt=""><figcaption></figcaption></figure>

the ticket is finalized with a closing note.

<figure><img src="/files/fNRIQDfC1zqshImhJ9IE" alt=""><figcaption></figcaption></figure>

This concludes the overview of a technician's workflow when handling an assigned ticket.
